Overview
Bring Your Own Auth (BYOA) lets you authenticate your own users to EkaCare agents without an OIDC
flow. Your backend builds a short-lived encrypted token (JWE) containing the user’s identity,
encrypts it with your shared secret, and sends it to EkaCare — which looks up your secret by its
Key ID, decrypts the token, verifies it, and trusts the claims inside.
The token is a JWE (encrypted), not a signed JWT (JWS). Your shared secret both identifies you
(via its Key ID) and decrypts the payload.
Use it when your client has no OIDC/OAuth flow and you want to pass user data (mobile, name, etc.)
to EkaCare in encrypted form.
How It Works
Create a credential
In the Eka Developer Console (BYOA → Create) you get a Key ID and a
shared secret. The secret is shown only once — copy it immediately. Build the claims
On your backend, assemble the user’s identity claims (see Token Structure). Encrypt as a JWE
Encrypt the claims using your shared secret: alg: dir, enc: A256GCM, with the protected header
kid set to your Key ID.
Send it
Hand the token to your embedded MedAssist widget — via the auth-token attribute or
EkaMedAssist.init({ authToken }). See Send the Token. EkaCare verifies
EkaCare looks up your secret and registered issuer by the kid, decrypts the token, and trusts the
verified claims.
Before You Begin
Create a BYOA credential in the Eka Developer Console. You will need:
- Key ID — the public identifier for your credential (e.g.
byoa_xxxxxxxxxxxxxxxx); goes in the
token’s kid header.
- Shared secret — used to encrypt the token. Shown only once at creation.
- Issuer — the issuer URL you registered on the credential; the token’s
iss claim must match it
exactly.
The shared secret is shown only once. Store it securely on your backend and never expose it in
client-side code. If it is lost or leaked, revoke the credential and create a new one.
Token Structure
The x-auth-token is a compact JWE with a protected header and an encrypted payload of claims.
{ "kid": "byoa_xxxxxxxxxxxxxxxx", "alg": "dir", "enc": "A256GCM" }
kid — your credential’s Key ID.
alg — dir (the shared secret is used directly as the encryption key).
enc — A256GCM (content encryption).
Payload claims
Your issuer — must exactly match the issuer registered on your credential.
Intended audience. Always https://eka.care.
Subject — the user identifier (for example, the mobile number with country code).
The user’s mobile number, with country code.
Issued-at time, in epoch seconds (UTC).
Expiry time, in epoch seconds. Keep it short — iat + 300 (about 5 minutes).
Recommended. A unique ID per request so EkaCare can reject replays of the same token.
Example payload:
{
"iss": "https://partner.example.com",
"aud": "https://eka.care",
"sub": "+919876543210",
"mobile_number": "+919876543210",
"iat": 1749600000,
"exp": 1749600300
}
The shared secret is a base64url-encoded 32-byte key. Decode it to 32 raw bytes before using it as the
A256GCM content-encryption key.
Generate the Token
Build the claims, encrypt them as a JWE with your shared secret (alg: dir, enc: A256GCM, header
kid), and serialize to compact form. The shared secret is base64url-decoded to a 32-byte key.
import base64
import time
import orjson
from jwcrypto import jwe, jwk
def mint_partner_token() -> str:
# Provided by Eka
kid = "kid_v1"
secret = "dGVzdHNlY3JldGtleWZvcmp3ZXRlc3QxMjM0NTY3ODk"
# Your values
now = int(time.time())
claims = {
"iss": "https://partner.example.com",
"aud": "https://eka.care",
"sub": "+919876543210",
"mobile_number": "+919876543210",
"iat": now,
"exp": now + 300,
}
# Build key
padded = secret + "=" * (-len(secret) % 4)
raw = base64.urlsafe_b64decode(padded)
k_b64 = base64.urlsafe_b64encode(raw).rstrip(b"=").decode()
jwk_key = jwk.JWK(kty="oct", k=k_b64)
# Encrypt
token_obj = jwe.JWE(
plaintext=orjson.dumps(claims),
protected=orjson.dumps({"alg": "dir", "enc": "A256GCM", "kid": kid}).decode(),
)
token_obj.add_recipient(jwk_key)
return token_obj.serialize(compact=True)
token = mint_partner_token()
print(token)
import { CompactEncrypt } from 'jose';
async function mintPartnerToken() {
const kid = "kid_v1";
const secret = "dGVzdHNlY3JldGtleWZvcmp3ZXRlc3QxMjM0NTY3ODk";
const now = Math.floor(Date.now() / 1000);
const claims = {
iss: "https://partner.example.com",
aud: "https://eka.care",
sub: "+919876543210",
mobile_number: "+919876543210",
iat: now,
exp: now + 300,
};
const key = Buffer.from(secret, "base64url");
const token = await new CompactEncrypt(
Buffer.from(JSON.stringify(claims))
)
.setProtectedHeader({
alg: "dir",
enc: "A256GCM",
kid,
})
.encrypt(key);
return token;
}
mintPartnerToken()
.then(token => {
console.log("\nGenerated JWE:\n");
console.log(token);
})
.catch(console.error);
package main
import (
"encoding/base64"
"encoding/json"
"fmt"
"time"
jose "github.com/go-jose/go-jose/v4"
)
func mintPartnerToken() (string, error) {
kid := "kid_v1"
secret := "dGVzdHNlY3JldGtleWZvcmp3ZXRlc3QxMjM0NTY3ODk"
now := time.Now().Unix()
claims := map[string]interface{}{
"iss": "https://partner.example.com",
"aud": "https://eka.care",
"sub": "+919876543210",
"mobile_number": "+919876543210",
"iat": now,
"exp": now + 300,
}
payload, err := json.Marshal(claims)
if err != nil {
return "", err
}
key, err := base64.RawURLEncoding.DecodeString(secret)
if err != nil {
return "", err
}
encrypter, err := jose.NewEncrypter(
jose.A256GCM,
jose.Recipient{
Algorithm: jose.DIRECT,
Key: key,
},
(&jose.EncrypterOptions{}).WithHeader("kid", kid),
)
if err != nil {
return "", err
}
obj, err := encrypter.Encrypt(payload)
if err != nil {
return "", err
}
return obj.CompactSerialize()
}
func main() {
token, err := mintPartnerToken()
if err != nil {
panic(err)
}
fmt.Println(token)
}
import org.jose4j.jwe.JsonWebEncryption;
import org.jose4j.jwe.ContentEncryptionAlgorithmIdentifiers;
import org.jose4j.jwe.KeyManagementAlgorithmIdentifiers;
import org.jose4j.keys.AesKey;
import java.util.Base64;
public class GenerateJWE {
public static void main(String[] args) throws Exception {
String kid = "kid_v1";
String secret = "dGVzdHNlY3JldGtleWZvcmp3ZXRlc3QxMjM0NTY3ODk";
long now = System.currentTimeMillis() / 1000;
String payload = String.format("""
{
"iss":"https://partner.example.com",
"aud":"https://eka.care",
"sub":"+919876543210",
"mobile_number":"+919876543210",
"iat":%d,
"exp":%d
}
""", now, now + 300);
byte[] keyBytes = Base64.getUrlDecoder().decode(secret);
AesKey key = new AesKey(keyBytes);
JsonWebEncryption jwe = new JsonWebEncryption();
jwe.setPayload(payload);
jwe.setAlgorithmHeaderValue(
KeyManagementAlgorithmIdentifiers.DIRECT);
jwe.setEncryptionMethodHeaderParameter(
ContentEncryptionAlgorithmIdentifiers.AES_256_GCM);
jwe.setKeyIdHeaderValue(kid);
jwe.setKey(key);
String token = jwe.getCompactSerialization();
System.out.println(token);
}
}
Send the Token

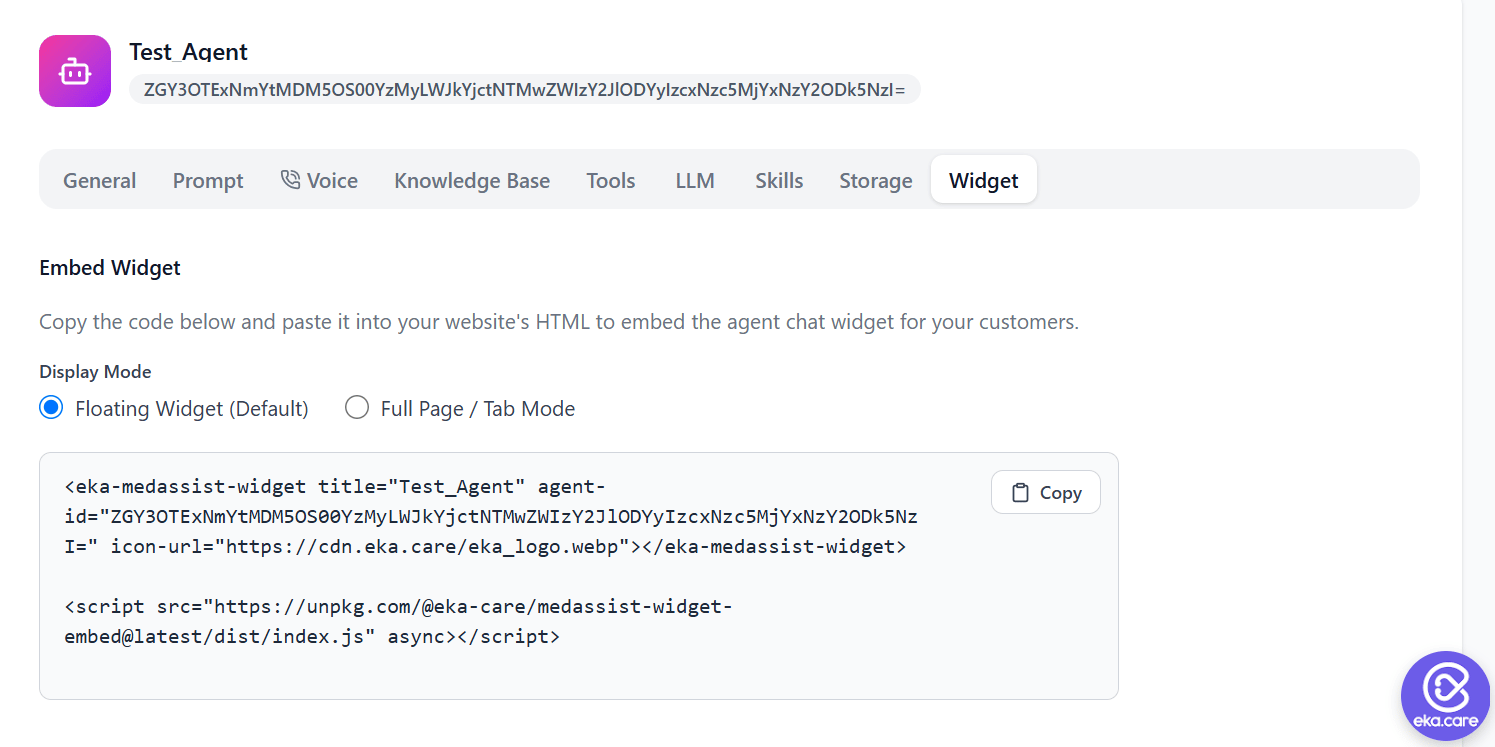

The MedAssist widget is EkaCare’s embeddable chat widget. Copy its embed snippet from your agent’s
Widget tab in the Developer Console (or see the
widget quickstart), then add the token to it.
There are two ways to pass the token:
<eka-medassist-widget
agent-id="YOUR_AGENT_ID"
auth-token="COMPACT_JWE">
</eka-medassist-widget>
<script
src="https://cdn.jsdelivr.net/npm/@eka-care/medassist-widget-embed@latest/dist/index.js"
async
></script>
<eka-medassist-widget agent-id="YOUR_AGENT_ID"></eka-medassist-widget>
<script
src="https://cdn.jsdelivr.net/npm/@eka-care/medassist-widget-embed@latest/dist/index.js"
async
></script>
<script>
window.EkaMedAssist.init({
agentId: "YOUR_AGENT_ID",
authToken: "COMPACT_JWE",
});
</script>
- Custom element — set the
auth-token attribute on the <eka-medassist-widget> element. Best
when you can render the token into the page server-side. See the
widget quickstart.
- JavaScript — pass
authToken to EkaMedAssist.init(). Best when the token is dynamic (e.g.
minted per logged-in user at runtime). See the
JavaScript API.
How EkaCare Verifies
When EkaCare receives the token, it:
- Reads the
kid from the token header and looks up the matching shared secret and registered
issuer.
- Decrypts the JWE with your secret.
- Verifies the claims —
iss matches the registered issuer, aud is https://eka.care, and iat
and exp are within the allowed window. If you include a jti, it must not have been seen before
(replay protection).
If any check fails, the request is rejected.
Best Practices
- Generate tokens server-side only — never ship the shared secret to a browser or mobile app.
- Keep
exp short (~5 minutes) and use a fresh jti for every request.
- Rotate by revoking the credential and creating a new one, then update your agents to the new Key ID.
